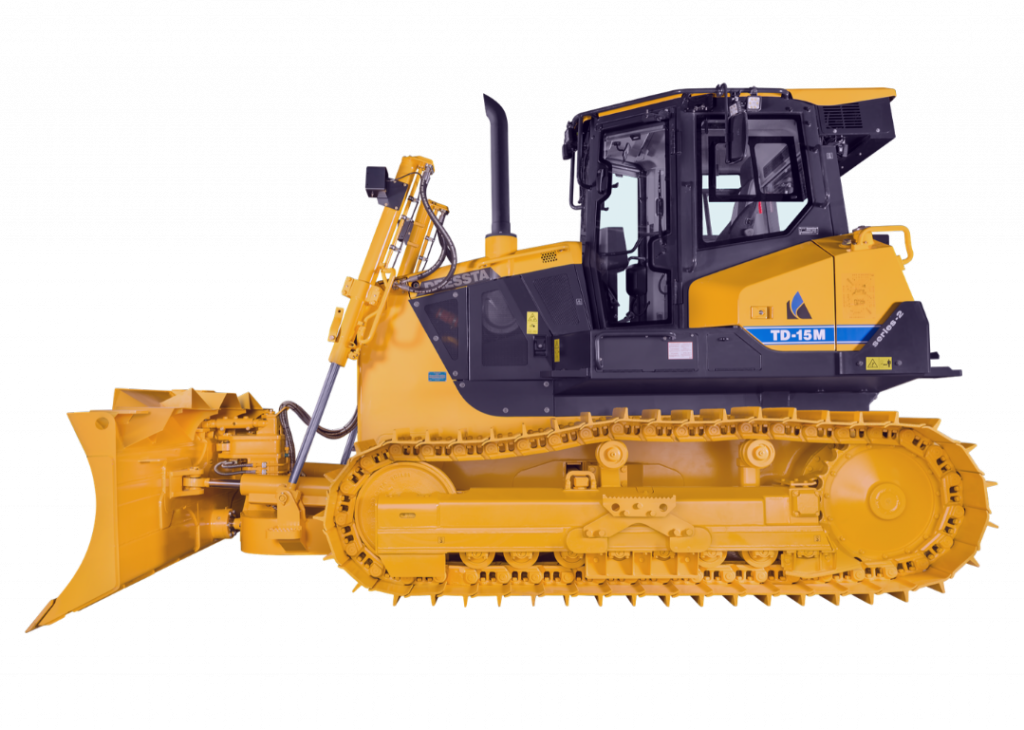

NEW TD-15M
Specification
Basic Specifications
| Engine Range | 142 kW - 153 kW |
| Weight Range | 20.6 t - 21.5 t |
| Blade Capacity Range | 3.6 - 5.9 m3 |
| Ground Pressure | 36.9 kPa |
Driveline
| EngineManufacturerModelTier | Cummins B 6.7 St V |
| Displacement | 6.7 l |
| RatedSpeed | 2000 RPM |
| EngineOutputNet | 159 kW |
| RatedSpeedTorque | 1950 RPM |
| EngineTorque | 949 Nm |
| CarrierRollersTrackRollers | 6 |
| TrackShoeWidth | 508 mm |
| GroundContactArea | 27000 cm2 |
| NumberOfShoes | 39 |
Dimensions
| HeightTopOfROPSMax | 3450 mm |
| GroundClearance | 445 mm |
| WidthOverTracks | 2440 mm |
| TrackLengthOnGround | 2640 mm |
| BladeWidth | 3440 mm |
| OverallLength | 4050 mm |
| GroundClearance | 445 mm |
Performance
| SpeedForwardMaximum | 10.5 km/h |
| SpeedReverseMaximum | 12.3 km/h |
| GroundBearingPressure | 65.7 kPa |
| DrawbarPullMaximum | 472 kN |
| ImplementPumpFlow | 147 l/min |
Operating Weight
| Operating Weight | 20710 kg |

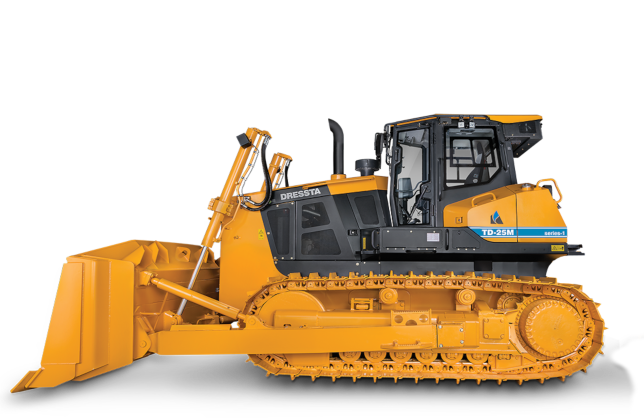

NEW TD-25M
Specification
Basic Specifications
| Engine Range | 246 kW - 280 kW |
| Weight Range | 41.2 t - 41.5 t |
| Blade Capacity Range | 9.6 - 21 m3 |
| Ground Pressure | 102 kPa |
Driveline
| EngineManufacturerModelTier | Cummins X15 EPA Tier 4f |
| Displacement | 15 l |
| EngineOutputNet | 277 kW |
| RatedSpeedTorque | 2000 RPM |
| EngineTorque | 2169 Nm |
| NumberOfShoes | 39 |
Dimensions
| GroundClearance | 36600 mm |
| TrackLengthOnGround | 3270 mm |
| BladeWidth | 4050 mm |
| GroundClearance | 36600 mm |
Performance
| SpeedForwardMaximum | 10.3 km/h |
| SpeedReverseMaximum | 12.3 km/h |
| GroundBearingPressure | 96 kPa |
| DrawbarPullMaximum | 794 kN |
Operating Weight
| Operating Weight | 41250 kg |

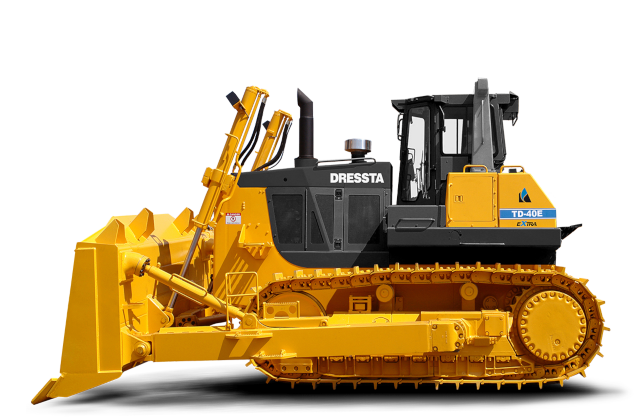

TD-40
Specification
Basic Specifications
| Engine Range | 384 kW - 394 kW |
| Weight | 67.7 t |
| Blade Capacity Range | 18.6 - 39.8 m3 |
Driveline
| EngineManufacturerModelTier | Cummins/QSK 19/T3 |
| Displacement | 19 l |
| RatedSpeed | 2000 RPM |
| EngineOutputNet | 384 kW |
| RatedSpeedTorque | 1500 RPM |
| EngineTorque | 2379 Nm |
| TransmissionTypeFwdRevSpeeds | Powershift - 6/6 |
| CarrierRollersTrackRollers | 2/6 |
| ShoePitch | 280 mm |
| TrackShoeWidth | 610 mm |
| GroundContactArea | 44000 cm2 |
| NumberOfShoes | 39 |
Dimensions
| HeightTopOfROPSMax | 4220 mm |
| WidthOverTracks | 3110 mm |
| TrackLengthOnGround | 3610 mm |
| BladeWidth | 4810 mm |
Performance
| SpeedForwardMaximum | 12 km/h |
| SpeedReverseMaximum | 14.9 km/h |
| GroundBearingPressure | 151 kPa |
| DrawbarPullMaximum | 1162 kN |
| ImplementPumpFlow | 398 l/min |
Operating Weight
| Operating Weight | 67700 kg |
Capacities
| FuelTank | 1362 l |
| HydraulicTank | 169 l |
| BladeCapacity | 18.6 m3 |

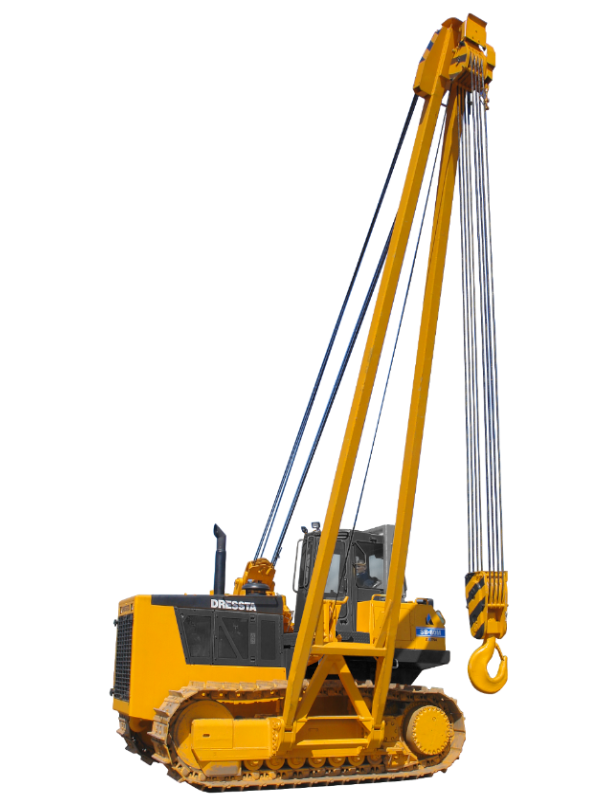

SB-60
Specification
Basic Specifications
| Engine | 238 kW |
| Weight | 51.1 t |
| Max. Lifting Capacity | 72.0 t |
Driveline
| Engine Manufacturer / Model / Tier | Cummins/QSG12/T4F |
| Displacement | 11.8 l |
| Rated Speed | 2000 RPM |
| Engine Output - Net | 238 kW |
| Rated Speed - Torque | 1400 RPM |
| Engine Torque | 1862 Nm |
| Transmission Type - Fwd Rev Speeds | Powershift - 6/6 |
| Track Shoe Width | 762 mm |
Capacities
| Fuel Tank | 690 l |
Dimensions
| Overall Length | 5460 mm |
| Transport Width - Side Frames Removed | 3600 mm |
| Boom Length | 7315 mm |
| Width - Weights Retracted | 3600 mm |
| Cable Size - Hook Winch | 0.019 m |
| Cable Length - Hook Winch | 0.092 m |
Performance
| Ground Bearing Pressure | 93.8 kPa |
| Lift Capacity - Tipping | 72000 kg |
| Load Capacity | 62000 kg |
| Speed Forward | 3.7 km/h |
Operating Weight
| Operating Weight | 51280 kg |
SB-85
Specification
Basic Specifications
| Engine | 276 kW |
| Weight | 68.0 t |
| Max. Lifting Capacity | 100.0 t |
Driveline
| Engine Manufacturer / Model / Tier | Cummins/QSX 15/T4F |
| Displacement | 15 l |
| Rated Speed | 2000 RPM |
| Engine Output - Net | 276 kW |
| Rated Speed - Torque | 1400 RPM |
| Engine Torque | 1825 Nm |
| Transmission Type - Fwd Rev Speeds | Powershift - 6/6 |
| Track Shoe Width | 915 mm |
Capacities
| Fuel Tank | 700 L |
Dimensions
| Ground Clearance | 660 mm |
| Track Length - On Ground | 3985 mm |
| Overall Length | 5770 mm |
| Ground Clearance | 660 mm |
| Transport Width - Side Frames Removed | 4100 mm |
| Boom Length | 7300 mm |
| Width - Weights Retracted | 4100 mm |
| Cable Size - Hook Winch | 0.0222 m |
| Cable Length - Hook Winch | 0.106 m |
Performance
| Ground Bearing Pressure | 86.6 kPa |
| Lift Capacity - Tipping | 100000 kg |
| Load Capacity | 85000 kg |
| Speed Forward | 3.7 km/h |
Operating Weight
| Operating Weight | 64480 kg |
