Ego 35 I 45 I 55
Specification
Ego | 35 | 45 | 55 | |
Emissions | Tier2 | Tier2 | Tier2 | |
Manufacturer | SDF 1000.4 W | SDF 1000.4 WT | SDF 1000.4 WTI | |
Cylinders/Capacity | No./cc | 4/4000 | 4/4000 | 4/4000 |
Naturally aspirated | Standard | Not Avilable | Not Avilable | |
Turbocharged intake | Not Avilable | Standard | Standard | |
Silencer under hood with vertical exhaust | Standard | Standard | Standard | |
Max. homologated power (ECE R120) | kW/hp | 61/83 | 64.6/87 | 70/96 |
Max. engine speed (rated) | rpm | 2430 | 2430 | 2430 |
Max. torque | Nm | 257 | 344 | 375 |
Mechanical governor | Standard | Standard | Standard | |
Air cleaner with dust ejector | Standard | Standard | Standard | |
Liquid cooling | Standard | Standard | Standard | |
Cooling liquid | Standard | Standard | Standard | |
Fuel tank capacity | litres | 90 | 90 | 90 |
Agrofarm G | 85 | 100 | 115 | |
Synchromesh |
| Standard | Standard | Standard |
Number of speeds with supercreeper gear | n° | 20+20
| 20+20
| 20+20
|
Minimum/maximum speed with supercreeper gear | km/h | 1,85/0,20 | 2,01/0,22 | 2,01/0,22 |
Number of speeds with Hi-Lo and creeper Max. speed | n° | 40+40 | 40+40 | 40+40 |
Max. speed | km/h | 40 | 40 | 40 |
Mechanical dry clutch, single | Standard | Standard | Standard | |
Agrofarm G | 85 | 100 | 115 | |
Multiplate wet clutch / Electrohydraulic control |
| Standard | Standard | Standard |
PTO 540/1000 |
| Standard | Standard | Standard |
PTO 540/540ECO/1000/1000ECO |
| Optional | Optional | Optional |
Ground speed PTO |
| Optional | Optional | Optional |
Agrofarm G | 85 | 100 | 115 | |
Open-centre hydraulic system | l/min | 56 | 56 | 56 |
Mechanical rear auxiliary distributors | No. of ways | 2/4/6/8 | 2/4/6/8 | 2/4/6/8 |
Agrofarm G | 85 | 100 | 115 | |
Braking system with wet brake discs |
| Standard | Standard | Standard |
Mechanical parking brae |
| Standard | Standard | Standard |
Agrofarm G | 85 | 100 | 115 | |
Standard rear tyres |
| 420/85R30" | 420/85R30" | 420/85R30" |
Max. length | mm | 3850 | 3850 | 3990 |
Width (min.-max.) | mm | 2050-2458 | 2050-2458 | 2050-2458 |
Wheelbase (4WD/2WD) | mm | 2310/2290 | 2310/2290 | 2340/2320 |
Front track (min.-max.) 2WD | mm | 1600-2100 | 1600-2100 | 1600-2100 |
Front track (min.-max.) 4WD | mm | 1630-2030 | 1630-2030 | 1630-2030 |
Rear track (min.-max.) | mm | 1602-2002 | 1602-2002 | 1602-2002 |
Max height at ROPS / with cab | mm | 2710/2740 | 2790/2790 | 2790/2790 |
Weight with ROPS (4WD/2WD) | kg | 3760/3120 | 4120/3540 | 4120/3540 |
Weight with cab (4WD/2WD) | kg | 4100/3260 | 4460/3680 | 4660/3680 |
Maximum load capacity (4WD/2WD) | kg | 6100/4800 | 6100/4800 | 7200/5300 |

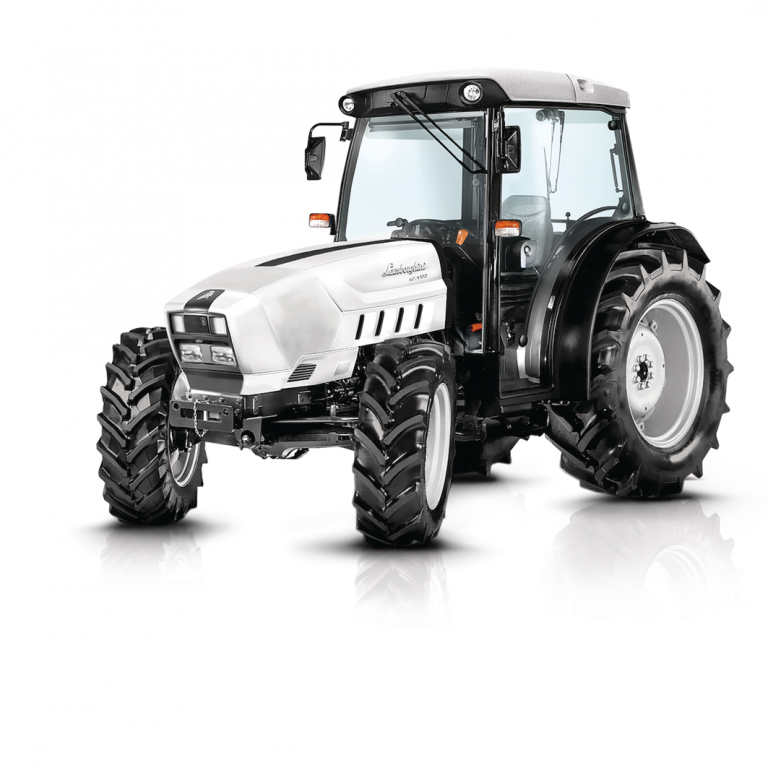

RF 80 I 90 I 100 I 110
Specification
RF. | 80 | 90 | 100 | 110 | |
Emissions |
| Tier3 | Tier3 | Tier3 | Tier3 |
Manufacturer |
| SDF | SDF | SDF | SDF |
Cylinders/Capacity | No./cm3 | 3/3,000 | 4/4,000 | 4/4,000 | 4/4,000 |
Intake |
| Turbo Intercooler | Turbo Intercooler | Turbo Intercooler | Turbo Intercooler |
Max. homologated power (2000/25/EC) at 2,200 rpm | kW/hp | 60/82 | 63/85 | 71/96 | 78/106 |
Max. torque at 1,600 rpm | Nm | 310 | 345 | 373 | 390 |
Electronic engine management |
| • | • | • | • |
Fuel tank (standard/optional) | litres | 54/40 | 54/40 | 54/40 | 54/40 |
RF. Mechanical reverse shuttle | 80 • | 90 • | 100 • | 110 • | |
Hydraulic Power shuttle with Stop&Go system | • | • | • | • |
5 speed gearbox |
| • | • | • | • |
Number of speeds with underdrive and supercreeper gear | n° | 30 + 15 | 30 + 15 | 30 + 15 | 30 + 15 |
POWERSHIFT GEARBOX |
|
|
|
|
|
5 speed gearbox |
| • | • | • | • |
Number of speeds with underdrive and supercreeper gear | n° | 45 + 45 | 45 + 45 | 45 + 45 | 45 + 45 |
Powershift number of speeds | n° | 3 | 3 | 3 | 3 |
Electrohydraulically engaged |
| • | • | • | • |
PTO 540 |
| • | • | • | • |
PTO 540/540ECO |
| • | • | • | • |
PTO 540/1000 |
| • | • | • | • |
Ground speed PTO |
| • | • | • | • |
Electrohydraulically engaged |
| • | • | • | • |
PTO 1000 |
| • | • | • | • |
Four wheel drive electrohydraulically engaged |
| • | • | • | • |
Electrohydraulically engaged differential lock |
| • | • | • | • |
Pump output | l/min | 54 | 54 | 54 | 54 |
Hydraulic system with dual pump | l/min | 33 + 25 | 33 + 25 | 33 + 25 | 33 + 25 |
Rear hydraulic auxiliary distributors | No. of ways | 6 | 6 | 6 | 6 |
Hydraulic mid-mounted auxiliary valves | No. of ways | 4 | 4 | 4 | 4 |
Multi-disc wet brakes on all four wheels |
| • | • | • | • |
Independent parking brake |
| • | • | • | • |
Hydraulic trailer braking |
| • | • | • | • |
Hydrostatic steering with independent pump |
| • | • | • | • |
Steering angle | degrees | 55° | 55° | 55° | 55° |
Mechanical rear hitch control |
| • | • | • | • |
Electronic rear hitch control |
| • | • | • | • |
Rear hitch lift capacity | kg | 2,800 | 2,800 | 2,800 | 2,800 |
Front hitch |
| • | • | • | • |
Front hitch lift capacity | kg | 1,500 | 1,500 | 1,500 | 1,500 |
Standard rear tyres |
| 360/70R24 | 380/70R24 | 420/70R24 | 420/70R24 |
Max. length without rear linkage | mm | 3,186 | 3,338 | 3,363 | 3,363 |
Width (min./max.) | mm | 1,443 / 2,012 | 1,478 / 1,988 | 1,618 / 2,018 | 1,618 / 2,018 |
Max height at ROPS | mm | 2,228 | 2,380 | 2,405 | 2,405 |
Max. height at cab | mm | 2,248 | 2,380 | 2,405 | 2,405 |
Ground clearance | mm | 225 | 225 | 250 | 250 |
Wheelbase | mm | 1,990 | 2,120 | 2,120 | 2,120 |
Front track (min./max.) | mm | 1,242 / 1,442 | 1,282 / 1,442 | 1,316 / 1,516 | 1,316 / 1,516 |
Rear track (min./max.) | mm | 1,139 / 1,637 | 1,277 / 1,589 | 1,179 / 1,579 | 1,179 / 1,579 |
Turning circle | mm | 3,600 | 3,700 | 3,700 | 3,700 |
Max. weight with ROPS | kg | 2,630 | 2,780 | 2,780 | 2,780 |
Max. weight with cab | kg | 2,850 | 3,000 | 3,000 | 3,000 |
Maximum load capacity | kg | 5,000 | 5,000 | 5,000 | 5,000 |
Spark G 155 I 185 I 200
Specification
SPARK G | 155 | 185 | 205 | |
Manufacturer |
| Deutz | Deutz | Deutz |
Model |
| TCD 2012 L06 2V | TCD 2012 L06 2V | TCD 2012 L06 2V |
Emissions |
| Stage III A | Stage III A | Stage III A |
Internal EGR |
| • | • | • |
Cylinder/Displacement | No./cm³ | 6/6057 | 6/6057 | 6/6057 |
Turbo intercooler |
| • | • | • |
Wastegate valve |
| • | • | • |
Deutz Common Rail (DCR) | bar | 1600 | 1600 | 1600 |
Power at rated engine speed (ECE R120) | kW/HP | 111/152 | 134/183 | 147/200 |
Max. power (ECE R120) | kW/HP | 120/163 | 140/190 | 149/203 |
Max. torque | Nm | 659 | 770 | 810 |
Engine speed at maximum torque | rpm | 1400 | 1600 | 1600 |
Torque rise | % | 33 | 32 | 27 |
Air filter with PowerCore |
| • | • | • |
Fuel tank capacity (standard) | litres | 250 | 345 | 345 |
Additional tank capacity (optional) | litres | 95 | - | - |
SPARK G | 155 | 185 | 205 | |
Manufacturer |
| ZF | ZF | ZF |
Model (Manual/Full Robotized) |
| TPT16 / - | TPT18 / TPT18 RCshift | TPT20 / TPT20 RCshift |
Number of speeds (4x6/5x6) | No. | 24+12/30+15 | - /30+15 | - /30+15 |
Number of speeds with supercreeper gear (4x6/5x6) | No. | 48+24/54+27 | - /54+27 | - /54+27 |
Powershift number of speeds (front/rear) | No. | 6/3 | 6/3 | 6/3 |
Minimum speed with supercreeper gear | km/h | 0.37 | 0.41 | 0.41 |
Max. speed (4x6) | km/h rpm | - | - | |
Max. speed (5x6)* | km/h rpm | |||
Max. speed (5x6 RCshift)* | km/h rpm | - | ||
Automatic Powershift (APS) |
| • | • | • |
SPARK G | 155 | 185 | 205 | |
PTO 540/540ECO/1000/1000ECO |
| • | • | • |
AUTO PTO |
| • | • | • |
Front PTO 1000 |
| • | • | • |
SPARK G | 155 | 185 | 205 | |
Fixed displacement pump (standard) | l/min | 84 | 90 | 90 |
Fixed displacement pump (optional) | l/min | 110 | 115 | 115 |
Variable displacement pump (Load Sensing) (standard) | l/min | 120 | 125 | 125 |
Variable displacement pump (Load Sensing) (optional) | l/min | 160 | 165 | 165 |
Auxiliary rear mechanical distributors (standard) | No. | 2 | 2 | 2 |
Auxiliary rear mechanical distributors (optional) | No. | 3/4 | 3/4 | 3/4 |
Power beyond |
| • | • | • |
SPARK G | 155 | 185 | 205 | |
Limited slip (45%) diff. lock |
| • | • | • |
Front axle with 100% diff. lock |
| • | • | • |
Electrohydraulically operated differential lock and 4WD (ASM) |
| • | • | • |
Four-wheel braking system with automatic 4WD engagement |
| • | • | • |
Powerbrake |
| • | • | • |
Mechanical parking brake |
| • | • | • |
Hydraulic trailer braking valve |
| • | • | • |
Pneumatic trailer braking valve |
| • | • | • |
Adaptive front axle suspension |
| • | • | • |
Steering pump capacity | l/min | 42 | 42 | 42 |
Steering angle |
| 52° | 52° | 52° |
SPARK G | 155 | 185 | 205 | |
Electronically controlled rear lift |
| • | • | • |
Rear lift capacity, two external cylinders 80 mm (standard) | kg | 6200 | 6200 | 6200 |
Rear lift capacity, two external cylinders 100 mm (optional) | kg | 9700 | 9700 | 9700 |
Controls on mudguard |
| • | • | • |
Front lifting capacity | kg | 3850 | 3850 | 3850 |
SPARK G | 155 | 185 | 205 | |
PowerVision Cab |
| • | • | • |
iMonitor2 (8") |
| • | • | • |
Mechanical cab suspension |
| • | • | • |
Air conditioning |
| • | • | • |
Telescopic external mirrors |
| • | • | • |
Halogen work lights |
| • | • | • |
LED work lights |
| • | • | • |
Agrofarm G | 85 | 100 | 115 | |
Standard rear tyres |
| 420/85R30" | 420/85R30" | 420/85R30" |
Max. length | mm | 3850 | 3850 | 3990 |
Width (min.-max.) | mm | 2050-2458 | 2050-2458 | 2050-2458 |
Wheelbase (4WD/2WD) | mm | 2310/2290 | 2310/2290 | 2340/2320 |
Front track (min.-max.) 2WD | mm | 1600-2100 | 1600-2100 | 1600-2100 |
Front track (min.-max.) 4WD | mm | 1630-2030 | 1630-2030 | 1630-2030 |
Rear track (min.-max.) | mm | 1602-2002 | 1602-2002 | 1602-2002 |
Max height at ROPS / with cab | mm | 2710/2740 | 2790/2790 | 2790/2790 |
Weight with ROPS (4WD/2WD) | kg | 3760/3120 | 4120/3540 | 4120/3540 |
Weight with cab (4WD/2WD) | kg | 4100/3260 | 4460/3680 | 4660/3680 |
Maximum load capacity (4WD/2WD) | kg | 6100/4800 | 6100/4800 | 7200/5300 |
